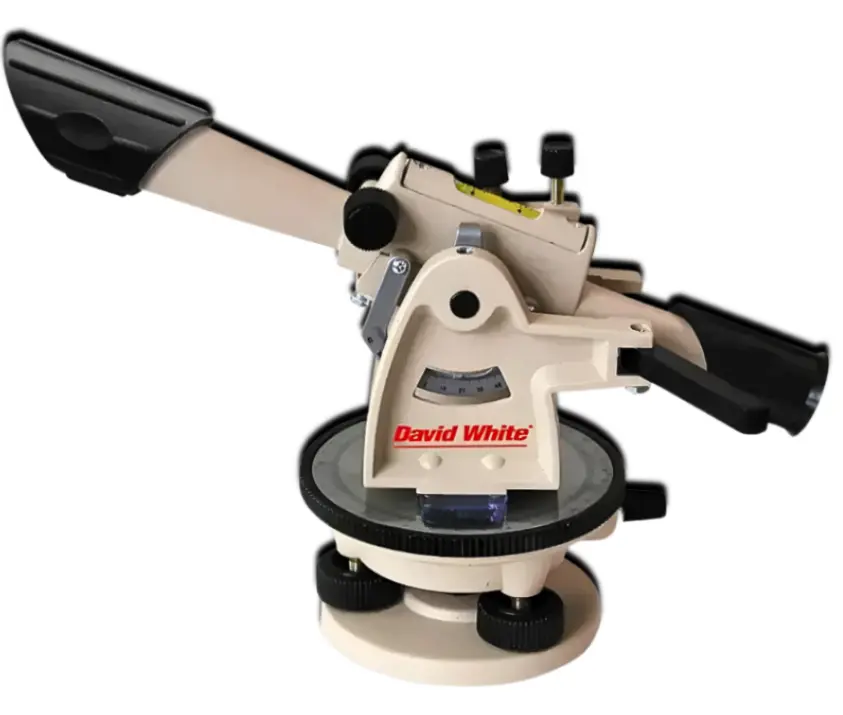

LT6-900 22-Power Optical Meridian Level-Transit

Description

• Accuracy: ±1/4 in at 100 ft (6 mm at 30 m)
• Range: Up to 200 ft (60 m)
• Magnification: 22x
• Telescope Length: 10.5 in (26.5 cm)
• Minimum Focus: 4 ft (1.2 m)
• Aperture: 0.75 in (19 mm)
• Field of View: 2° at 100 ft (0.6 m at 30 m)
• Number of Lenses: 6
• Horizontal Circle Diameter: 3.62 in (92 mm)
• Horizontal Circle Graduation: 1°
• Horizontal Circle Numbers: Every 10°, 0–90–0°
• Vernier Reading: Direct to 15 minutes (¼°)
• Vertical Arc Graduation: 1°
• Vertical Arc Numbers: Every 10°, 45–0–45°
• Center Type: Planar bearing
• Level Vial Sensitivity: 10 minutes per 2 mm
• Tripod Thread: 5/8-11
• Instrument Weight: 4.5 lb (2.0 kg)
