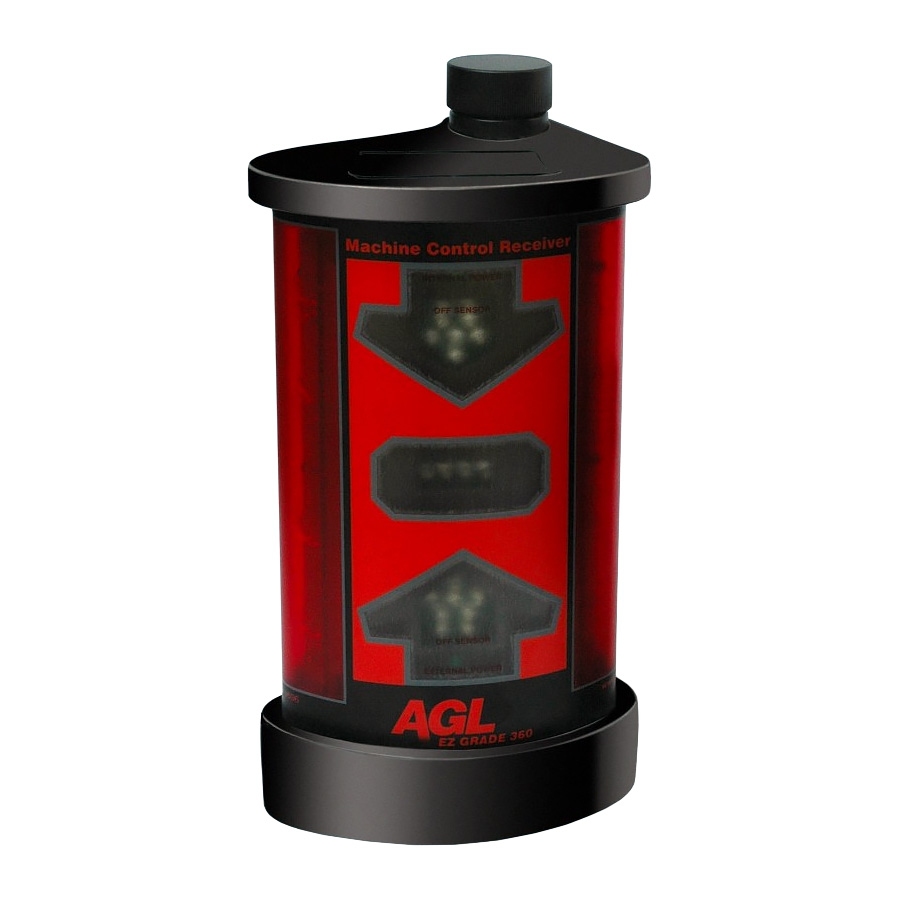

AGL EZ Grade 360 Machine Control Receiver, 6009193

SKU: 6009193
The EZ-Grade 360 is a versatile, super bright construction-tough laser receiver that can be mounted on dozers, motor graders, motorized scrapers, skid-steer loaders, backhoes and excavators.
-
Description
- The AGL EZ-Grade 360 laser detector receiver features a built-in super bright display and battery pack that make it ideally suited for visual indicate machine control application.
- The integral molded rubber housing components provide maximum protection from shock, water, and dust.
- All of the controls and plugs are recessed for protection.
- LED brightness can be selected by the user – super bright to view in bright sunlight or dim for low light.
- The AGL EZ-Grade 360 is the choice of the professional contractor.
- Typical applications include landscaping, building pads, sports fields, concrete flatwork, tennis courts, footers, storm drains, utility, sewage, general construction grade and depth control.
-
Specifications
Accuracy
± 1/8" (± 4 mm)
Capture height
8" (203 mm)
Reception
360º
Channels
7 Battery life
4 D-cell alkaline batteries (40 hrs)
Power options
NiCad (20 hrs); 12/24V DC power cord
Laser type
Visible or infrared
Body
Shock resistant
Window
Polycarbonate
Control
Bright/off/dim
Clamp capacity
1" to 2" OD (2.54 to 5.08 cm)
Size; weight
12" x 6.25" x 8.5" (30.5 x 15.8 x 21.6 cm); 7 lbs (3.2 kg)
