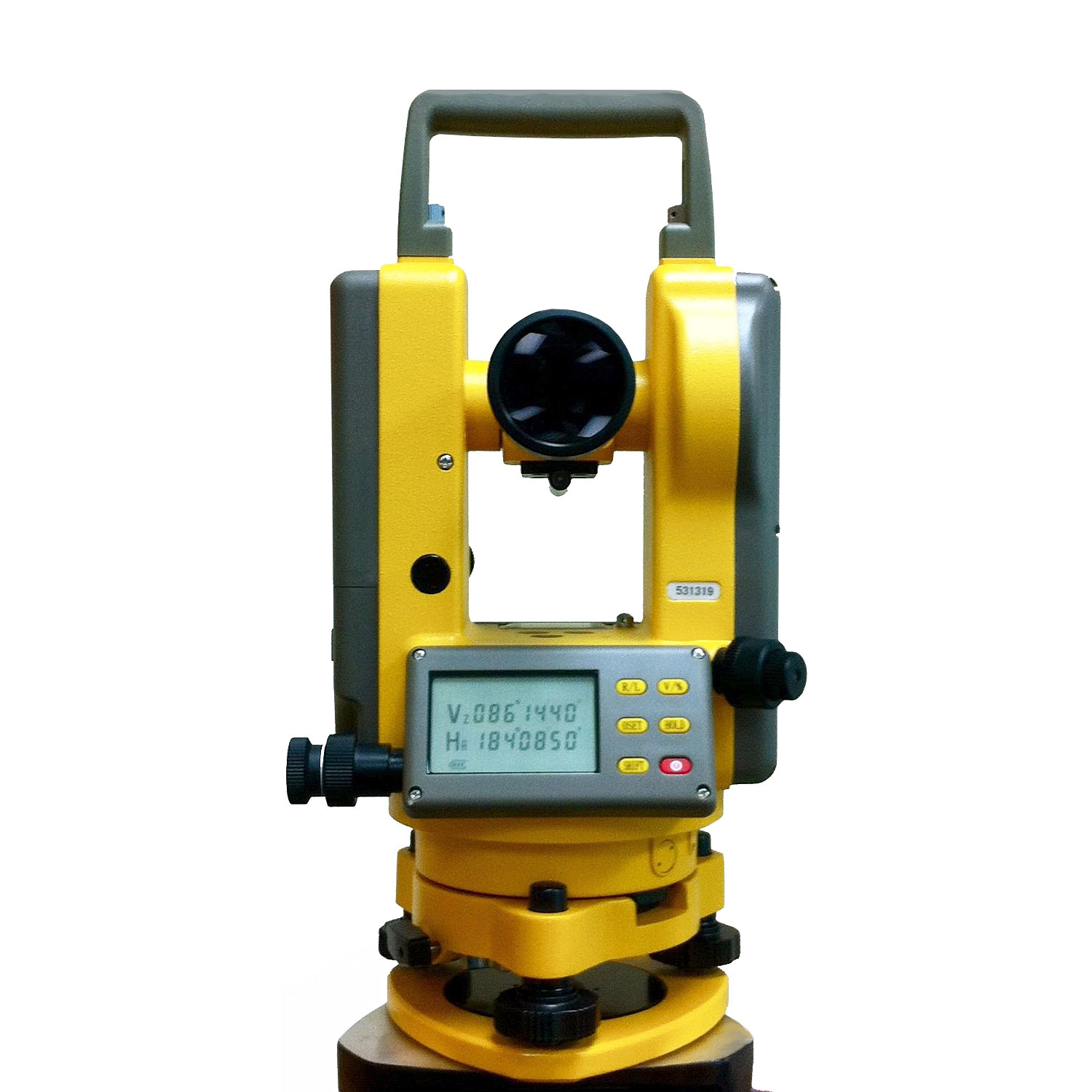

Northwest Instrument DEMO NETH503 (5 Second) Digital Theodolite

Northwest Instrument
SKU: 10503
Precisely measures horizontal and vertical angles at 5" accuracy. Ideal for building construction layout.

Included items:
  • NETH503 Digital Theodolite
  • Plumb Bob
  • Alkaline Batteries
  • Tool Kit

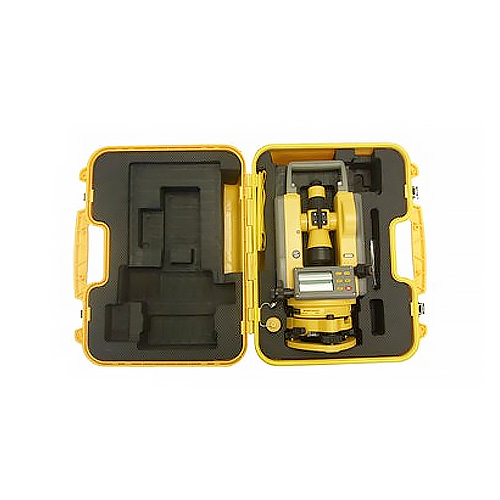

  • Carrying Case
  • Owner's Manual
  • Close out pricing
  • NEW INSTRUMENT STORE FLOOR DEMO
  • Description
    • This instrument is capable of precisely measuring angles in horizontal and vertical planes.
    • It integrates the same advanced glass encoder from our total stations.
    • It offers 5" angular accuracy, dual back-lit LCD screens for easy readouts.
    • Optical plummet for quick accurate setup over a point.
    • 3' minimum focus for short setups, optional 90 degree eyepiece for steep sights.
    • Horizontal and vertical clamps for steady alignment.
    • The Benchmark TH-035 Electronic Digital Theodolite, for construction layout.
    • The TH-035 has an accuracy of 5 seconds and digital display can be read to 5 or 10 seconds.
    • Precision and quality for building construction layout.
    • Surveying Instrument carrying case with accessories for ease of handling.
    • Benchmark AZ instrument warranty.
  • Specifications
    Accuracy
    5" sec
    Telescope
    Image erect
    Magnification
    30x
    Minimum reading
    5" measuring unit 360º
    Effective aperture
    45 mm
    Resolving power
    4"
    Field of view
    1º 20'
    Minimum focus
    3'
    Stadia Ratio
    1:100
    Measuring method
    Photoelectric incremental encoder
    Sensitivity of vial
    Plate vial 30'/2mm, circular vial 8'/2mm
    Optical plummet
    Magnification 3x
    Instrument display
    Double sided LCD power
    Operation time
    40 working hours with 6V alkaline battery
    Approx. weight with case
    10 lbs
  • Downloads
Price:
$999.00
