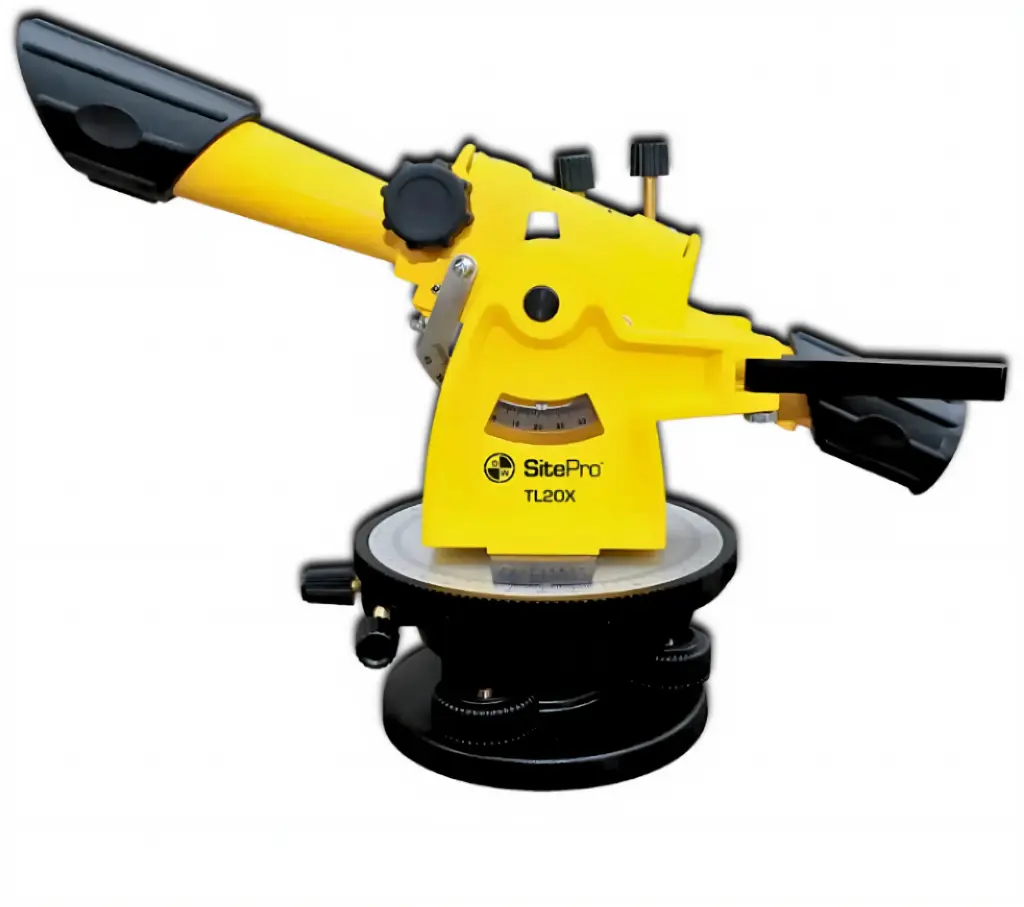

TL20X 20-Power Optical Transit Level

SitePro 25-TL20X 22X MERIDIAN TRANSIT-LEVEL

Modestly priced and easy to use, these instruments are designed for light construction work

for leveling, turning angles, and determining vertical angles.

• ± 1/4-inch at 100-feet leveling accuracy
• Up-to 200-foot range
• Horizontal Circle– Graduated to single degrees and reads by vernier direct to 1/4 degree (15 minutes)
• Features a Vertical Arc– Read to degrees (0-45º)
• Horizontal Lock and Tangent Screw– Provides precise movement control
• Built-in Sunshade – For clearer sightings
• Leveling Vial – Top mounted for effortless viewing

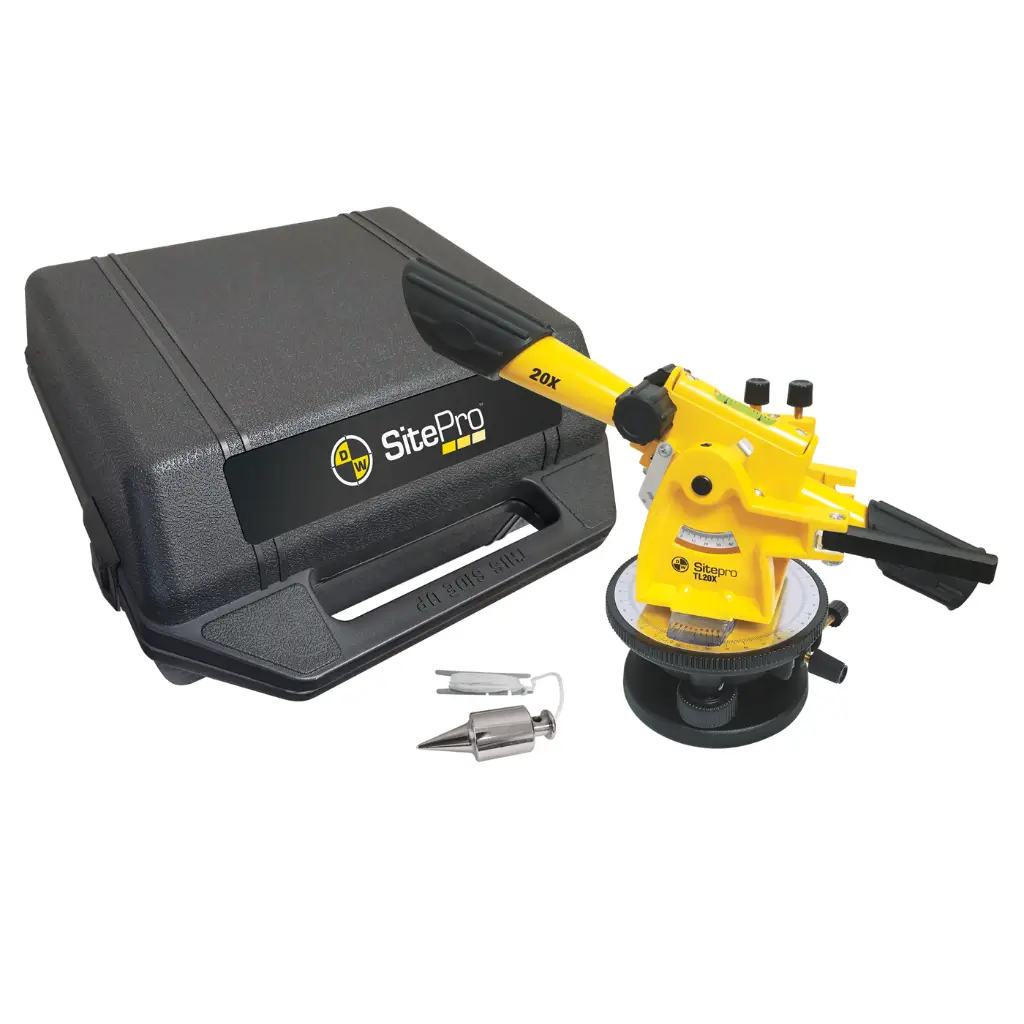

• 44-8834 (LT6-900) Transit-Level Instrument

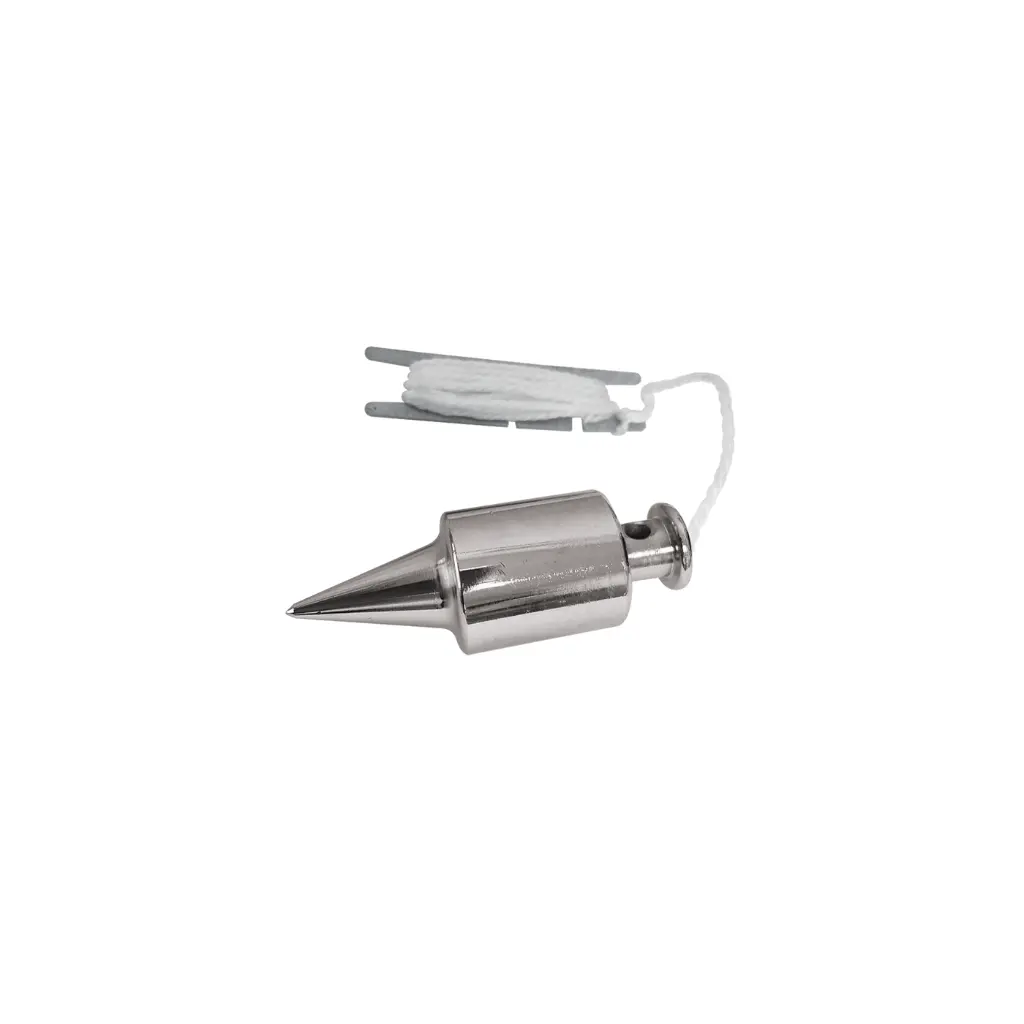

• Plumb Bob

• Heavy-Duty Hard Carrying Case
• Owners Manual
• 2-Year Warranty

Range: Up to 200 ft

Telescope

• Magnification: 22-power
• Length: 10.5-inch

• Minimum Focus: 4 ft (1.2 m)
• Aperture: 0.75-inch

• Field of View: 2-feet @ 100-foot

• No. of Lenses: 6

Horizontal Circle

• Graduation Diameter: 3.62-inch

• Graduations: Each 1°
• Numbers: Each 10°, 0-90-0°
• Vernier: Double direct to 15 min.

Vertical Arc

• Graduations: Each 1°
• Numbers: Each 10°, 45-0-45°

Other

• Center: Planar bearing
• Level Vial: 10 min. per 2 mm
• Weight: 4.5 lbs

• Short range leveling

• Turning angles, establishing 90° reference lines
• Determine vertical angles, basic grade work
• Checking angles, alignment and plumb
• Anchor bolt alignment
• Gravity flow pipe laser set-up
• Aligning Forms
• Aligning Walls
